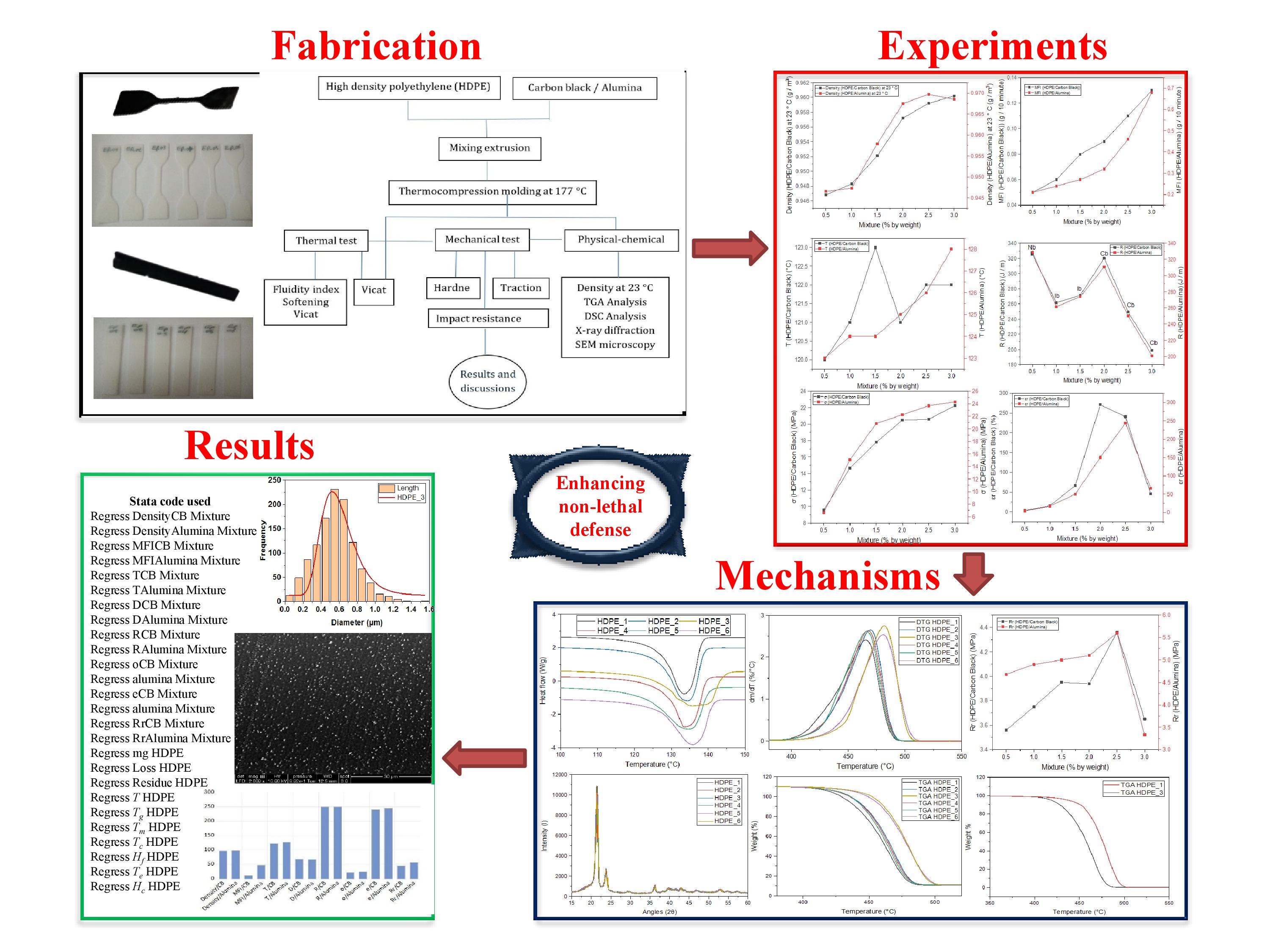

Industrial plastics have seen considerable progress recently, particularly in manufacturing non-lethal projectile holders for shock absorption. In this work, a variety of percentages of alumina (Al₂O₃) and carbon black (CB) were incorporated into high-density polyethylene (HDPE) to investigate the additive material effect on the consistency of HDPE projectile holders. The final product with the desired properties was controlled via physical, thermal, and mechanical analysis. Our research focuses on nanocomposites with a semicrystalline HDPE matrix strengthened among various nanocomposites. In the presence of compatibility, mixtures of variable compositions from 0 to 3% by weight were prepared. The reinforcement used was verified by X-ray diffraction (XRD) characterization, and thermogravimetric analysis (TGA) and differential scanning calorimetry (DSC) were used for thermal property investigation. Alumina particles increased the composites’ thermal system and glass transition temperature. Mechanical experiments indicate that incorporating alumina into the matrix diminishes impact resistance while augmenting static rupture stress. Scanning electron microscopy (SEM) revealed a consistent load distribution. Ultimately, we will conduct a statistical analysis to compare the experimental outcomes and translate them into mathematical answers that elucidate the impact of filler materials on the HDPE matrix.

1.         Kaplan WA. Modern Plastics Encyclopedia. Mcgraw-Hill/Modern Plastics; 1998.

2.         Bielinski D, Lipinski P, Slusarski L, et al. Surface layer modification of ion bombarded HDPE. Surface Science. 2004; 564: 179–186.

3.         Boumdouha N, Safidine Z, Boudiaf A, et al. Experimental study of the dynamic behavior of loaded polyurethane foam free fall investigation and evaluation of microstructure. The International Journal of Advanced Manufacturing Technology. 2022; 120: 3365–3381. doi: 10.1007/s00170-022-08963-1

4.         Chen X, Xu Y, Cao X, Gubanski SM. Electrical treeing behavior at high temperature in XLPE cable insulation samples. IEEE Transactions on Dielectrics and Electrical Insulation. 2015; 22: 2841–51.

5.         Boumdouha N, Courty L, Duchet-Rumeau J, Gerard JF. Quasi-Static Compression and Microstructural Characterization of Polyurethane Foams for Potential Use in Shock Absorbers. Journal of Basic & Applied Sciences. 2024; 20: 23–33.

6.         Vaughan AS, Zhao Y, Barré LL, et al. On additives, morphological evolution and dielectric breakdown in low density polyethylene. European Polymer Journal. 2003; 39: 355–65.

7.         Boumdouha N, Safidine Z, Boudiaf A, et al. Manufacture of polyurethane foam with a certain density. In: Proceedings of the International Conference on Recent Advances in Robotics and Automation ICRARE’18; 3–4 November 2018; Monastir, Tunisia. pp. 21–30.

8.         Saci H, Bouhelal S, Bouzarafa B, et al. Reversible crosslinked low density polyethylenes: Structure and thermal properties. Journal of Polymer Research. 2016; 23: 1–9.

9.         Huang JL, Nayak PK. Strengthening alumina ceramic matrix nanocomposites using spark plasma sintering. In: Advances in Ceramic Matrix Composites. Elsevier; 2018. pp. 231–247.

10.      Streller RC, Thomann R, Torno O, Mulhaupt R. Isotactic poly (propylene) nanocomposites based upon boehmite nanofillers. Macromolecular Materials and Engineering. 2008; 293: 218–227.

11.      Streller RC, Thomann R, Torno O, Mulhaupt R. Morphology, crystallization behavior, and mechanical properties of isotactic poly (propylene) nanocomposites based on organophilic boehmites. Macromolecular Materials and Engineering. 2009; 294: 380–388.

12.      Siengchin S, Karger-Kocsis J, Thomann R. Nanofilled and/or toughened POM composites produced by water-mediated melt compounding: Structure and mechanical properties. Express Polymer Letters. 2008; 2: 746–756.

13.      Yang JL, Zhang Z, Schlarb AK, Friedrich K. On the characterization of tensile creep resistance of polyamide 66 nanocomposites. Part I. Experimental results and general discussions. Polymer. 2006; 47: 2791–801.

14.      Karger-Kocsis J, Kmetty Á, Lendvai L, et al. Water-assisted production of thermoplastic nanocomposites: A review. Materials. 2015; 8: 72–95.

15.      Siengchin S, Karger-Kocsis J. Mechanical and stress relaxation behavior of Santoprene^® thermoplastic elastomer/boehmite alumina nanocomposites produced by water-mediated and direct melt compounding. Composites Part A: Applied Science and Manufacturing. 2010; 41: 768–773.

16.      Boumdouha N, Safidine Z, Boudiaf A. Preparation of Nonlethal Projectiles by Polyurethane Foam with the Dynamic and Microscopic Characterization for Risk Assessment and Management. ACS Omega. 2022; 7: 16211–16221.

17.      Noureddine B, Achraf B, Zitouni S. Mechanical and chemical characterizations of filled polyurethane foams used for non-lethal projectiles. In: Proceedings of the 10-th European Symposium on Non-Lethal Weapons EWG-NLW; 20–23 May 2019; Brussels, Belgium. p. 68.

18.      Boumdouha N, Duchet-Rumeau J, Gerard JF et al. Research on the Dynamic Response Properties of Nonlethal Projectiles for Injury Risk Assessment. ACS Omega. 2022; 7: 47129–47147.

19.      Boumdouha N, Duchet-Rumeau J, Gerard JF. Enhancement of Mechanical Properties in Non-Lethal Projectile Holders through High-Density Polyethylene and Alumina Nanocomposites. Journal of Basic & Applied Sciences. 2024; 20: 34–47.

20.      Boumdouha N, Safidine Z, Boudiaf A. Experimental Study of Loaded Foams During Free Fall Investigation and Evaluation of Microstructure. The International Journal of Advanced Manufacturing Technology. 2021.

21.      Boumdouha N, Duchet-Rumeau J, Gerard JF. Structure Property and Performance of Polymeric Foams: A Review. Journal of Basic & Applied Sciences. 2024; 20: 1–22.

22.      Trotignon JP, Piperaud M, Verdu J, Dobraczynski A. Summary of plastic materials, Structure–Properties, Implementation and Standardization (French). Afnor; 1992.

23.      Chaudhuri I, Ngiewih Y, McCunney RJ, Levy L. Carbon black is not black carbon. Toxicological & Environmental Chemistry. 2021; 103: 236–237.

24.      Namdari M, Lee CS, Haghighat F. A systematic comparative study of granular activated carbons and catalysts for ozone removal. Building and Environment. 2022; 224: 109510.

25.      Jebur SK. Carbon black production, analyzing and characterization [Master’s thesis]. Missouri University of Science and Technology; 2018.

26.      Yuan Q, Jiang W, An L, et al. Mechanical and thermal properties of high‐density polyethylene toughened with glass beads. Journal of Applied Polymer Science. 2003; 89: 2102–2107.

27.      Zhang S, Cao XY, Ma YM, et al. The effects of particle size and content on the thermal conductivity and mechanical properties of Al₂O₃/high density polyethylene (HDPE) composites. Express Polymer Letters. 2011; 5: 581–590.

28.      Saxena PK, Raut KG, Srinivasan SR, et al. Polyurethane waterproofing coating for building applications. Construction and Building Materials. 1991; 5: 208–210.

29.      ASTM D. 1505-03—Standard Test Method for Density of Plastics by the Density-Gradient Technique. American Society for Testing and Materials; 2003. pp. 1–7.

30.      Alimi L, Ghabeche W, Chaoui W, Chaoui K. Study of the mechanical properties through the wall of an extruded HDPE-80 tube intended for the distribution of natural gas (French). Matériaux & Techniques. 2012; 100: 79–86.

31.      Shirsath NB, Gupta GR, Gite VV, Meshram JS. Studies of thermally assisted interactions of polysulphide polymer with ionic liquids. Bulletin of Materials Science. 2018; 41: 1–8.

32.      Hemminger W. Thermal Analysis: Fundamentals and Applications to Polymer Science. Thermochimica Acta; 1995.

33.      Lewitus D, McCarthy S, Ophir A, Kenig S. The effect of nanoclays on the properties of PLLA-modified polymers Part 1: Mechanical and thermal properties. Journal of Polymers and the Environment. 2006; 14: 171–177.

34.      Dali-Youcef Z, Bouabdasselem H, Bettahar N. Removal of Organic Compounds by Local Clays (French). Comptes Rendus Chimie. 2006; 9: 1295–1300.

35.      Gaboune A. Use of polymerization compounding technique for the preparation of polyethylene/montmorillonite nanocomposite (French) [Master’s thesis]. Université Laval; 2006: 37.

36.      Peterlin A. Mechanical properties of fibrous structure. extrait de «Ultra-Hight modulus polymers». Gifferi A, Ward IM. London: Appl. Sic. Pub. Ltd. 1979; 279–320.

37.      Ward IM. The yield behavior of polymers. Journal of materials Science. 1971; 6: 1397–417.

38.      Faerber J. Scanning electron microscopy X-ray microanalysis by electron probe (French). Institut de Physique et Chimie de Matériaux de Strasbourg (IPCMS); 2004. pp. 1–53.

39.      Hassan EAM, Elarabi SE, Wei Y, Yu M. Biodegradable poly (lactic acid)/poly (butylene succinate) fibers with high elongation for health care products. Textile Research Journal. 2018; 88: 1735–1744.

40.      Ling GH, Shaw MT. Crystalline crosslinked microparticles from immiscible blends of polyethylene and polystyrene. Polymer. 2009; 50: 4917–4925.

41.      Bocchini S, Morlat-Thérias S, Gardette JL, Camino G. Influence of nanodispersed boehmite on polypropylene photooxidation. Polymer Degradation and Stability. 2007; 92: 1847–1856.

42.      Fu T. PP/clay nanocomposites: compounding and thin-wall injection moulding [Doctoral dissertation]. Loughborough University; 2017.

43.      Choi WJ, Kim SH, Jin Kim Y, Kim SC. Synthesis of chain-extended organifier and properties of polyurethane/clay nanocomposites. Polymer. 2004; 45: 6045–6057.

44.      Lai SM, Chen WC, Zhu XS. Melt mixed compatibilized polypropylene/clay nanocomposites: Part 1—the effect of compatibilizers on optical transmittance and mechanical properties. Composites Part A: Applied Science and Manufacturing. 2009; 40: 754–765.

45.      Ashby MF, Jones DRH. Materials. Volume 2, Microstructure and Implementation (French). Dunod; 1997.

46.      Osswald TA. Mechanical Behavior of Polymers. Understanding Polymer Processing. 2017: 29–59.

47.      Leszczyńska A, Njuguna J, Pielichowski K, Banerjee JR. Polymer/montmorillonite nanocomposites with improved thermal properties. Part I. Factors influencing thermal stability and mechanisms of thermal stability improvement. Thermochimica Acta. 2007; 453: 75–96.

48.      Guermazi N, Elleuch K, Ayedi HF, Kapsa P. Aging effect on thermal, mechanical and tribological behavior of polymeric coatings used for pipeline application. Journal of Materials Processing Technology. 2008; 203: 404–410.

49.      Liang G, Xu J, Bao S, Xu W. Polyethylene/Maleic anhydride grafted polyethylene/organic-montmorillonite nanocomposites. I. Preparation, microstructure, and mechanical properties. Journal of Applied Polymer Science. 2004; 91: 3974–3980.

50.      Dabees S, Tirth V, Kamel BM. Synthesis and characterization studies of high-density polyethylene-based nanocomposites with enhanced surface energy, tribological, and electrical properties. Polymer Testing. 2021; 98: 107193.

51.      Usuki A. Nylon 6-clay Hybrid: From Invention to Practical Use. R&D Review of Toyata CRDL. 2016; 47(1): 45–55.

52.      Noureddine B, Zitouni S, Achraf B, et al. Development and Characterization of Tailored Polyurethane Foams for Shock Absorption. Applied Sciences. 2022; 12: 2206.

53.      Boumdouha N, Safidine Z, Boudiaf A, et al. Mechanical and microstructural characterization of polyurethane foams. In: Proceedings of the 8th Chemistry Days JCh8–EMP; 26–27 March 2019; Algiers, Algeria. p. 169.

54.      Boumdouha N, Safidine Z, Boudiaf A. A new study of dynamic mechanical analysis and the microstructure of polyurethane foams filled. Turkish Journal of Chemistry. 2022; 46: 814–834.

55.      Boumdouha N, Louar MA. Influence of Microstructure on the Dynamic Behavior of Polyurethane Foam with Various Densities. Journal of Basic & Applied Sciences. 2023; 19: 131–150.
